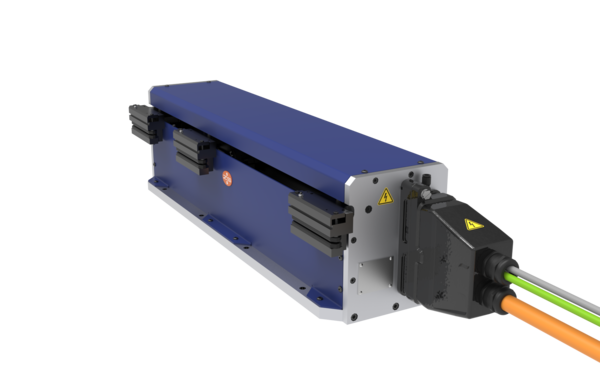

Long electric linear feed - Standard Clamps

Accurate

• Precision mechanics and high-tech materials for highest accuracy
• Compact precision linear motor

Versatile Installation

• Compact linear axis design vertical
• Individual customizable feed lengths
• Available with clamps for different material widths
• Also available in combination with a second unit equipped with side clamps for wide materials
• Drive units near axis (e.g. in tooling)

Versatile Use

• Single or multi-motor axis
• Various tailor made clamping, gripping and guiding options
• Adaptable covers

Technical Data

• Material thickness up to 1 mm or 4 mm
• A wide variety of device and feed lengths available
• Solutions with clamps for material widths up to 80 mm, 160 mm or 240 mm available
• Precision ±0,02 mm
• Recommended material cross section max. 50 mm^{2 **}

              ^{** please ask for case specific calculations}
