OVERVIEW OF GRIPPER AND LINEAR FEEDING SYSTEMS

PRODUCT OVERVIEW

Electric Feeds

Small Electric Linear Feeds
Compact Horizontal Gripper Feed (EZ KLC)
Compact Vertical Wire Feed (EZ KV-C)
Medium Electric Feeds
Powerful, medium-sized horizontal gripper feed (EZ ML-D)
Long Vertical Gripper Feed (EZ MV-E)
High-speed Linear Feeds
eXtra Fast Gripper Feed (EZ MX-D)
eXtra Fast Gripper Feed (EZ MX-D)
Tandem Gripper Feed (EZ KT-D)
Large Electric Linear Feeds (in planning)
Large Gripper Feed (EZ GL-C)





Pneumatic Feeds

Pneumatic Gripper Feeds
Pneumatic Gripper Feed Small (J380)
Medium Size Pneumatic Gripper Feed (J341)

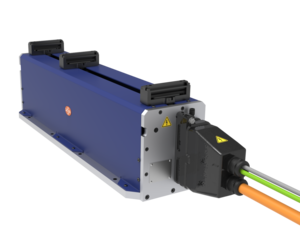

Linear Moving Axis

Long Linear Feeding Systems
Vertical Linear Feeding System (EO KV)
Horizontal Linear Feeding System (EO KL)
Multi Axis and Transfer Systems
Transfer System (2xEO KV)

Product Characteristics

Drives
  • K: Compact small electric linear motors (traction force up to 100 N)
  • M: Medium electric linear motors for high performance (traction force up to 400 N)
  • G: Strong large electric linear motors (traction force up to 3000 N)
  • J: Classic pneumatic feeders
Designs
  • L: Horizontal as feed for presses or automations
  • V: Vertical for narrow spaces or stamping/bending machines
  • T/X: Double motors for highest cycle rates
  • Multiple systems for special solutions and transfer systems
  • Double axes for transfer systems
Feed Lengths
  • C: Compact design for short feeds
  • D: Double overall length for medium feeds
  • E: Extended overall length for long feeds
  • O: Linear axes for extra long feed distances (max. 16'000 mm)
Fixing Systems
  • Classic Wide Clamps for flat strip material
  • Gripper Tongs for profiled materials
  • Special Clamps for wires or multiple wire feeds
  • Transport Platforms for zigzag and linear systems







applications

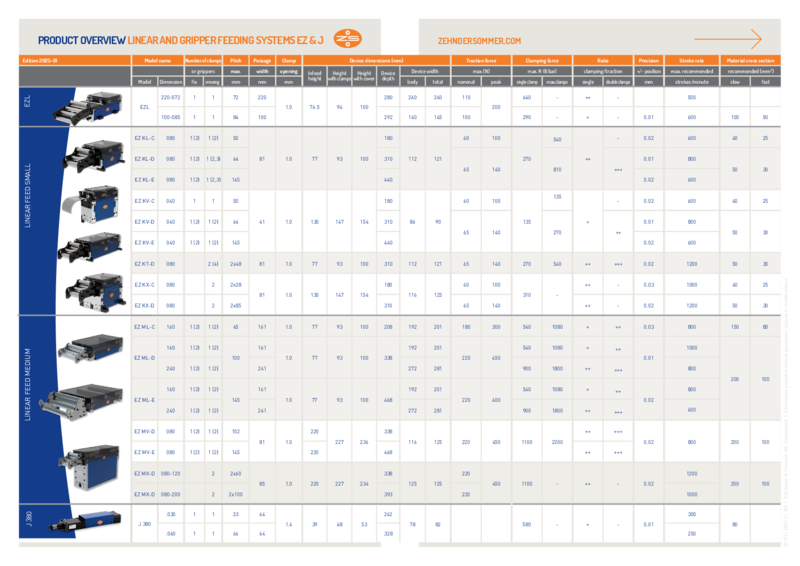

Overview Table

(Click to enlarge, download, or print in A3)

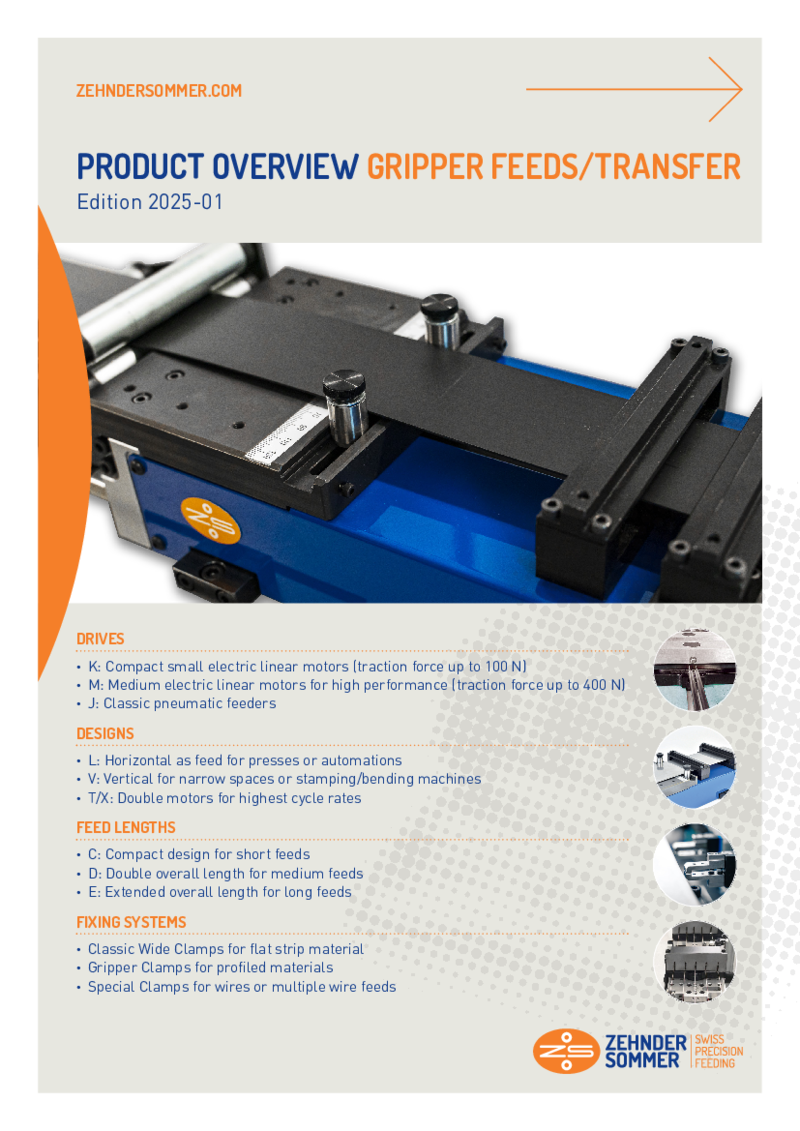

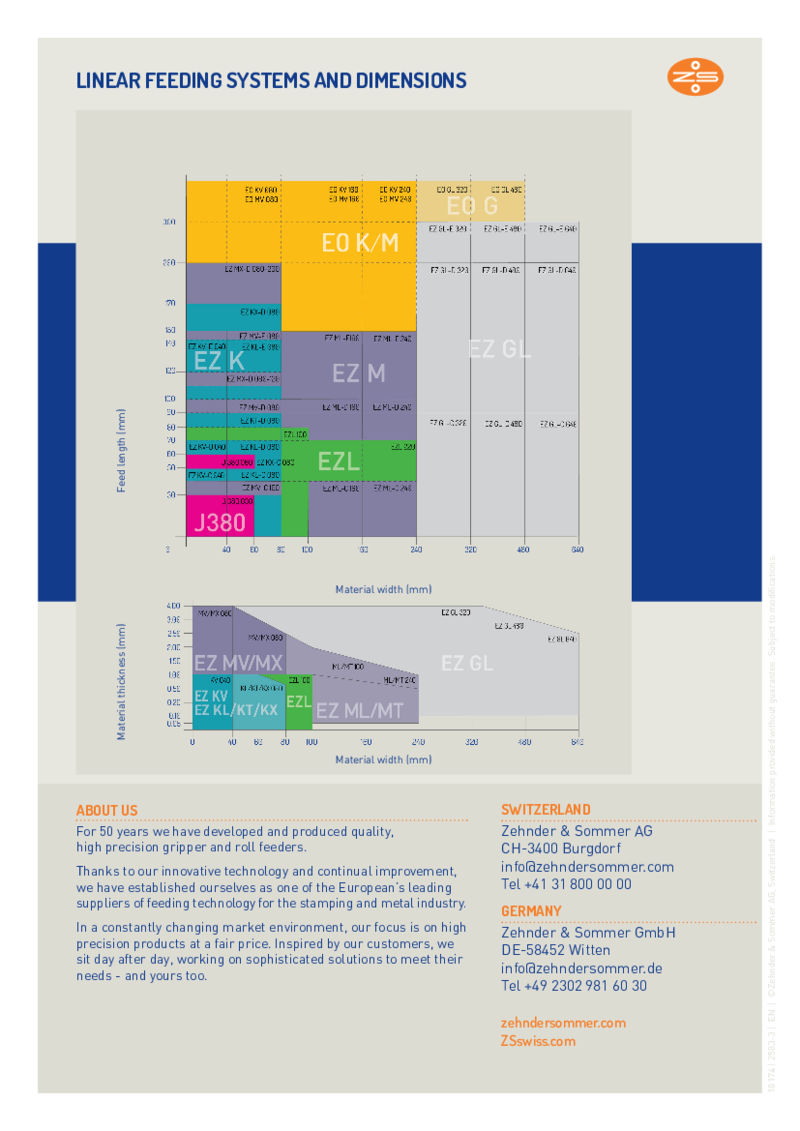

brochure

(to download and print in A4)
