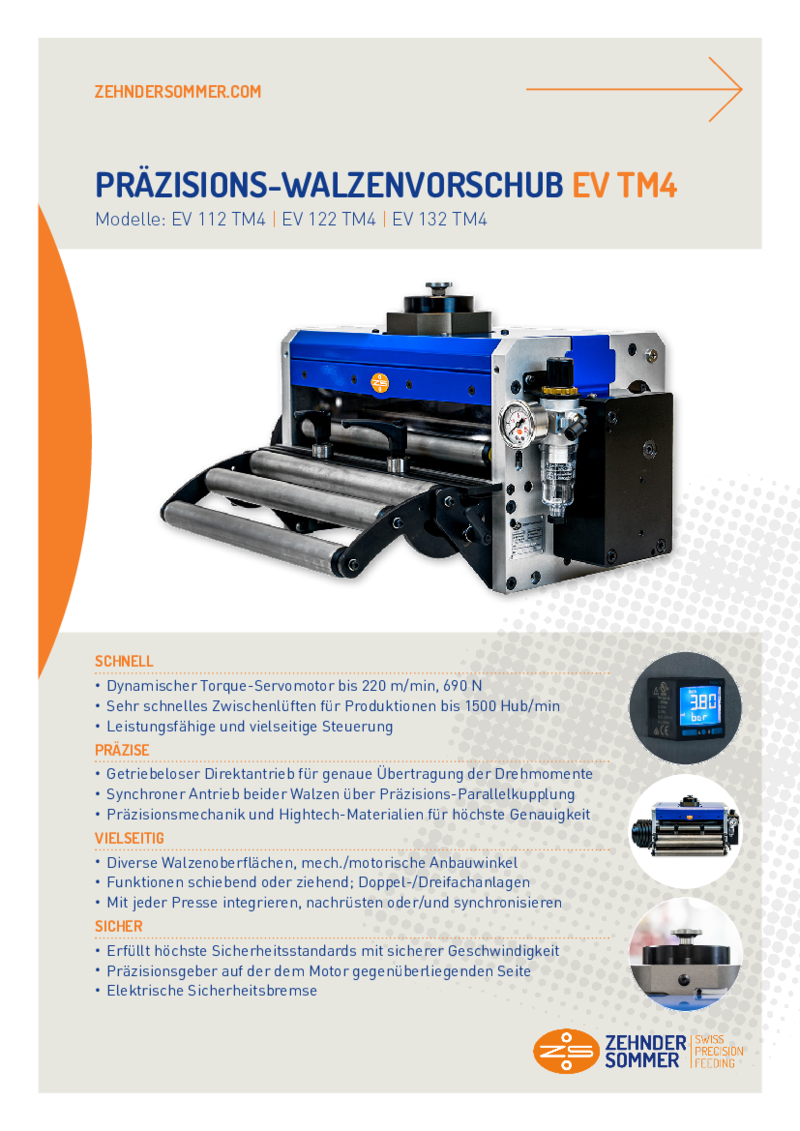

Precision Roll Feed - Medium

Speed

• Feed velocity up to 220 m/min.
• COLIBRI: Fast pilot releasing for productions up to 1500 strokes/min.

Precision

• Direct drive without gear
• Synchronously driven rolls over torsion-free precision parallel coupling
• Feed precision superior to 0.02mm

Band dimensions

• Band widths up to 140, 240, 340 mm
• Recommended material thickness 0.1-3.0 mm, max. 5.5 mm.

• Recommended material cross section:
  • high speed applications: up to 400 mm^{2 **}
  • standard applications: up to 600 mm^{2 **}
  • slow applications: up to 800 mm^{2 **}

                     ^{** Examples for grinded steel rolls feeding steel sheet, other materials and roll surfaces may differ
                         >  please ask for case specific calculations}
