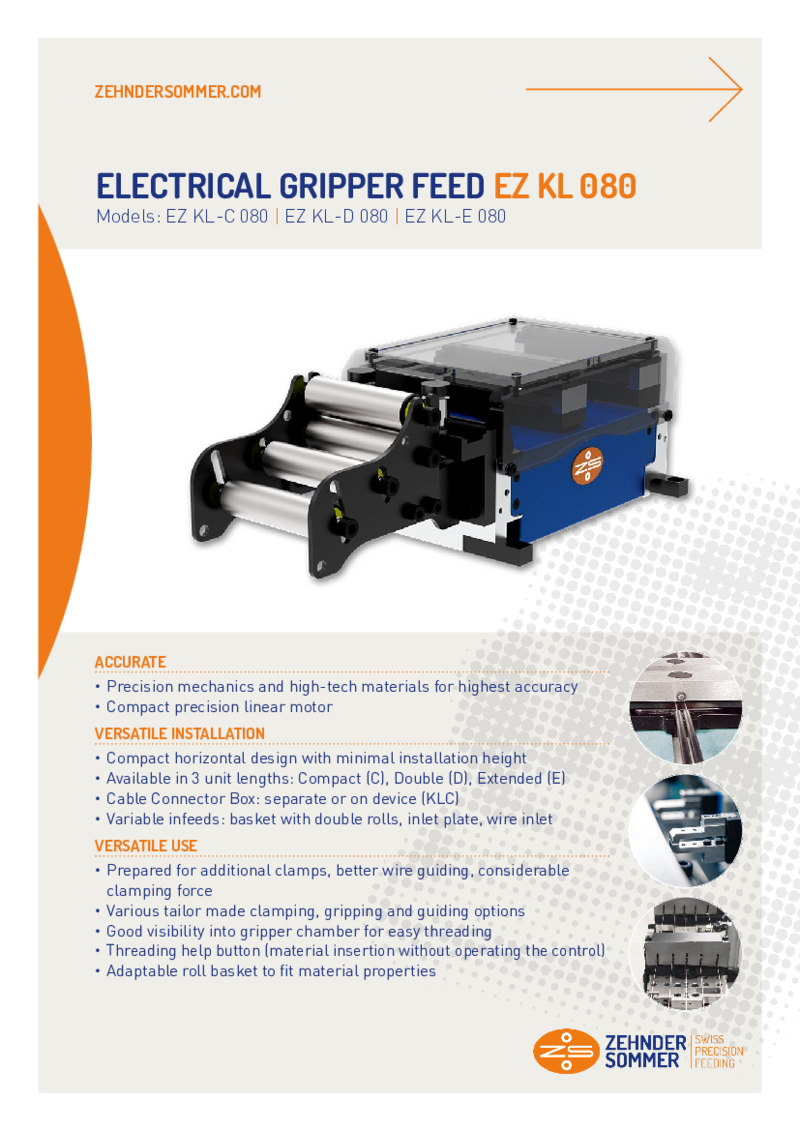

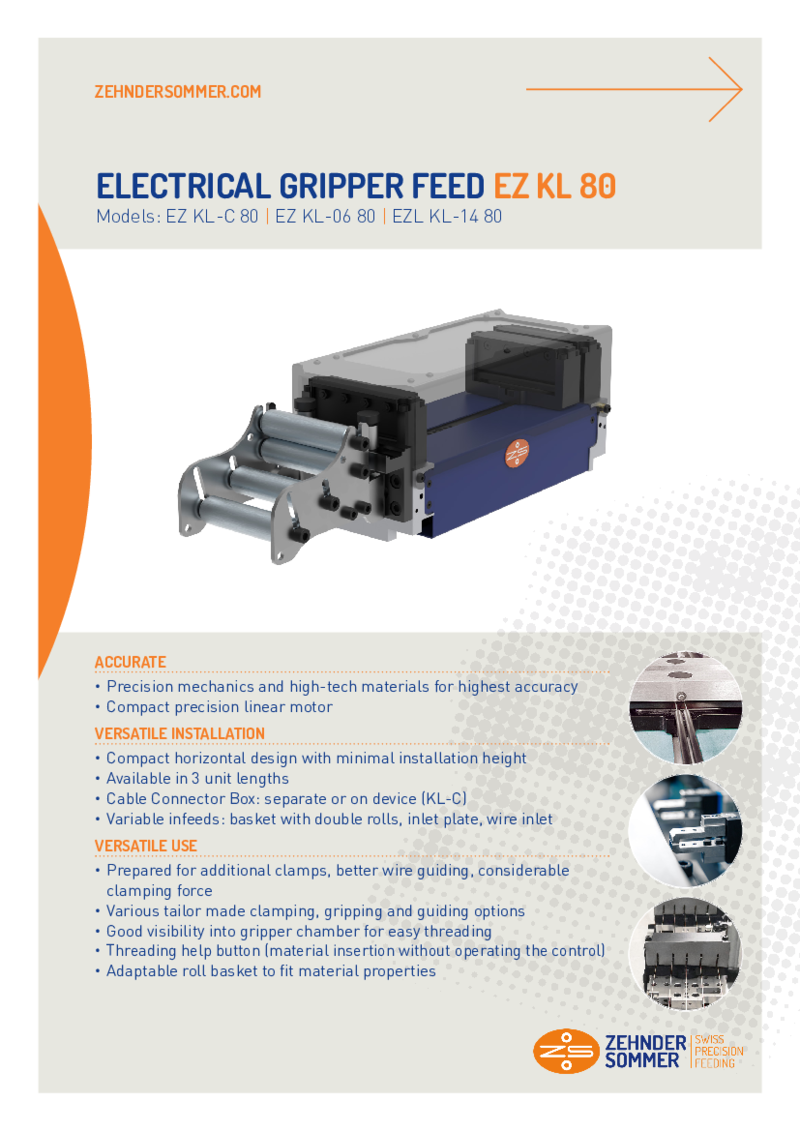

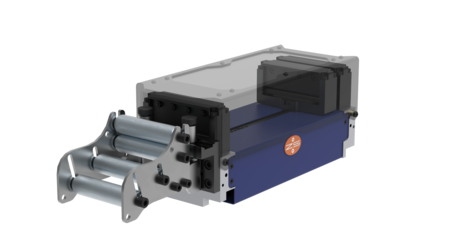

Small Electric Gripper Feed Horizontal

Accurate

• Precision mechanics and high-tech materials for highest accuracy
• Compact precision linear motor

Versatile Installation

• Compact horizontal design with minimal installation height
• NEWAvailable in 3 unit lengths: Compact (C), Double (D), Extended (E)
• NEWCustomizable Cable Connector Box for easy adaptation
• NEWVariable infeeds: cage with double rolls, inlet plate, wire inlet

Versatile Use

• NEWReady to add additional clamps for better wire guiding and stronger clamping forces
• NEWVarious tailor made clamping, gripping and guiding options
• NEWEasily visible clamp room for easy threading
• NEWThreading assistance button (material insertion without operating the control)
• NEWAdaptable roll cage to fit material properties

Technical Data

• Feed length options
  • Compact C: feed length 50 mm
  • Double D: feed length 102 mm
  • Extended E: feed length 152 mm
• Material widths up to 80 mm
• Recommended material thickness 0.05-1.0 mm
• Precision ±0.01-0.02 mm
• Recommended material cross section: max. 50 mm^{2 **}

              ^{** please ask for case specific calculations}
