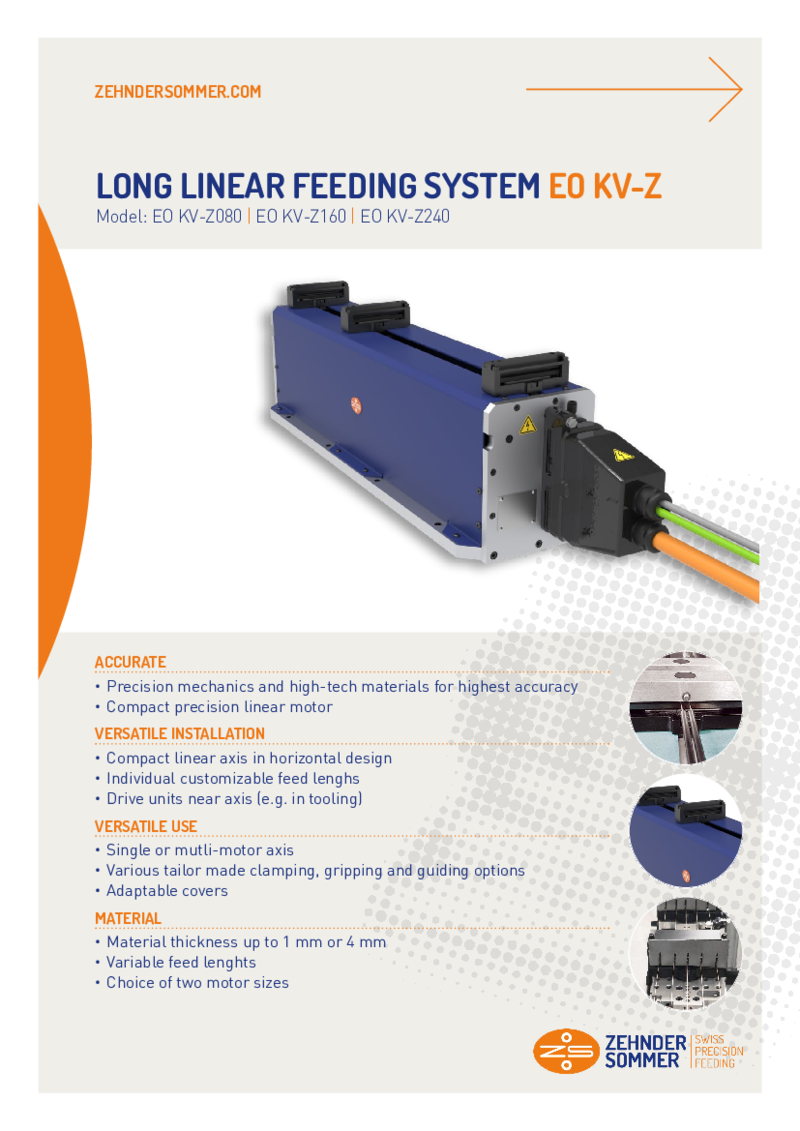

Long electric linear feed - Standard Clamps

Accurate

• Precision mechanics and high-tech materials for highest accuracy
• Compact precision linear motor

Versatile Installation

• Compact linear axis design vertical
• Individual customizable feed lengths
• Drive units near axis (e.g. in tooling)

Versatile Use

• Single or multi-motor axis
• Various tailor made clamping, gripping and guiding options
• Adaptable covers

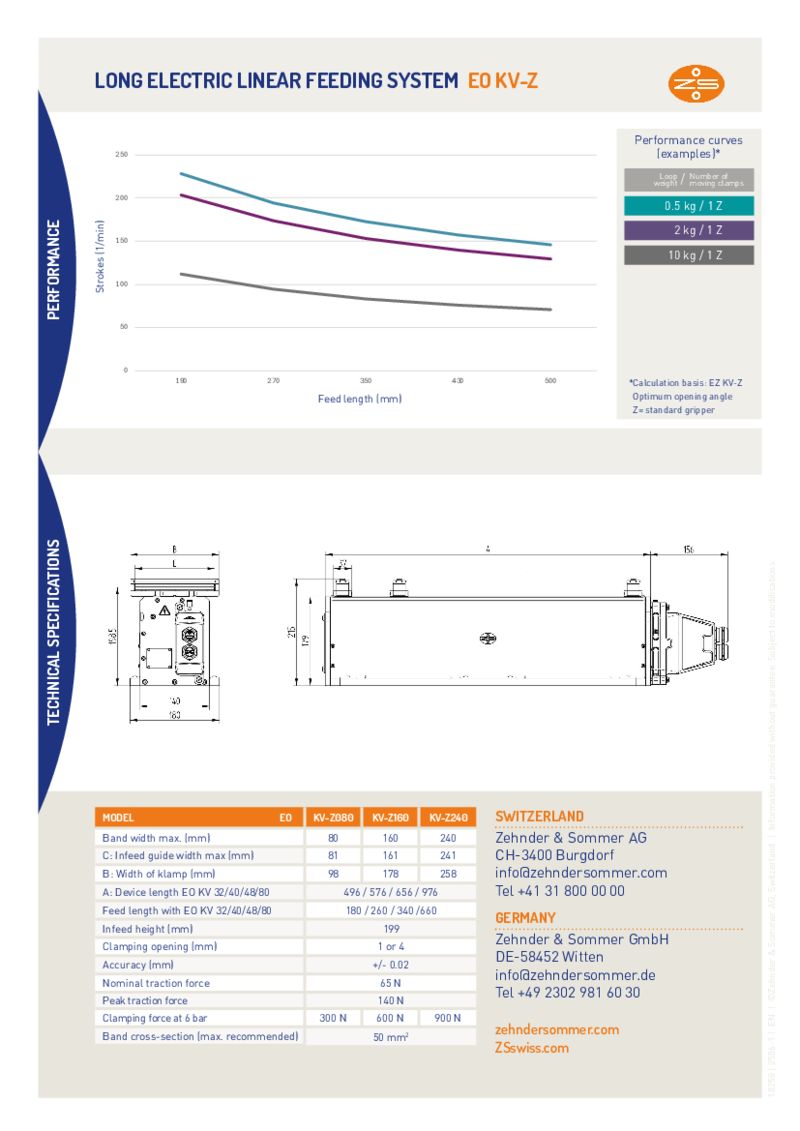

Technical Data

• Material thickness up to 1 mm or 4 mm
• Variable feed lengths, example:
  • EO KV32 Z: 200 mm
  • EO KV48 Z: 360 mm
  • EO KV80 Z: 680 mm
• Precision ±0,02 mm
• Choice of 2 motor sizes:
  • Small for recommended material cross section max. 50 mm^{2 **}
  • Medium for recommended material cross section max. 200 mm^{2 **}

              ^{** please ask for case specific calculations}
