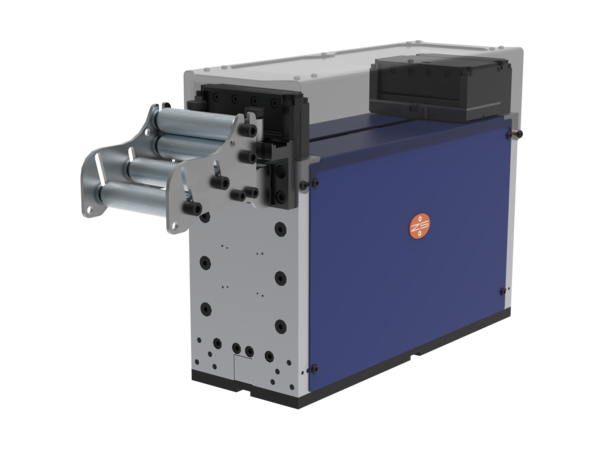

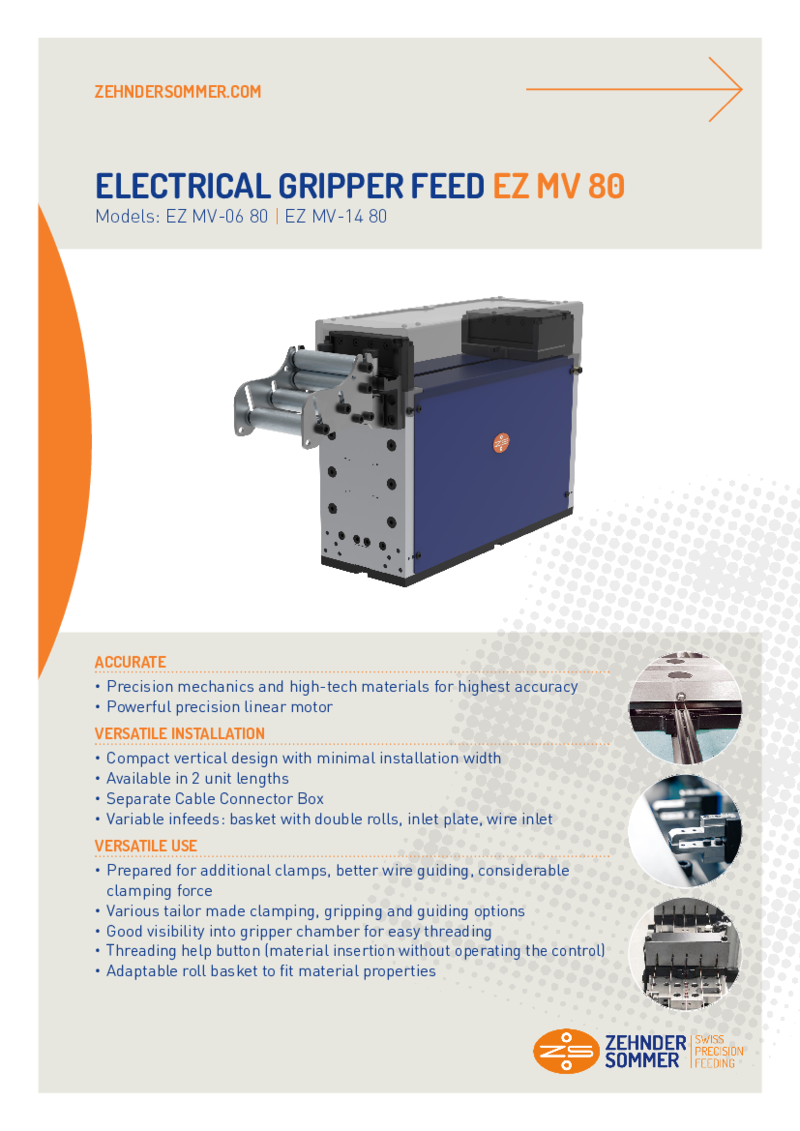

Medium Electric Gripper Feed Vertical

Accurate

• Precision mechanics and high-tech materials for highest accuracy
• Compact precision linear motor

Versatile Installation

• NEWVertical design for narrow application or vertical mount (e.g. stamping bending machines
• NEWAvailable in 3 unit lengths: Compact (C)*, Double (D), Extended (E)
• NEWCustomizable Cable Connector Box for easy adaptation
• NEWVariable infeeds: cage with double rolls, inlet plate, wire inlet

    ^{* Only on special request}

Versatile Use

• NEWReady to add additional clamps for better wire guiding and stronger clamping forces
• NEWVarious tailor made clamping, gripping and guiding options
• NEWEasily visible clamp room for easy threading
• NEWThreading assistance button (material insertion without operating the control)
• NEWAdaptable roller cage to fit material properties

Material

• Feed length options
  • Compact C: feed length 45 mm
  • Double D: feed length 102 mm
  • Extended E: feed length 167 mm
• Material widths up to 40 or 80 mm
• Recommended material thickness 0.05-1.0 mm
• Recommended material cross section: max. 200 mm^{2 **}

              ^{** please ask for case specific calculations}
