Linear Electric Performance Gripper Feed

Accurate

• Precision mechanics and high-tech materials for highest accuracy
• Compact precision linear motor

Double Motor

• Extended feed length in compact system design
• Increased speed

Versatile Installation

• Very compact design
• NEWCustomizable Cable Connector Box for easy adaptation
• NEWVariable infeeds: cage with double rolls, inlet plate, wire inlet

Versatile Use

• NEWVarious tailor made clamping, gripping and guiding options
• NEWEasily visible clamp room for easy threading
• NEWThreading assistance button (material insertion without operating the control)
• NEWAdaptable roller cage to fit material properties

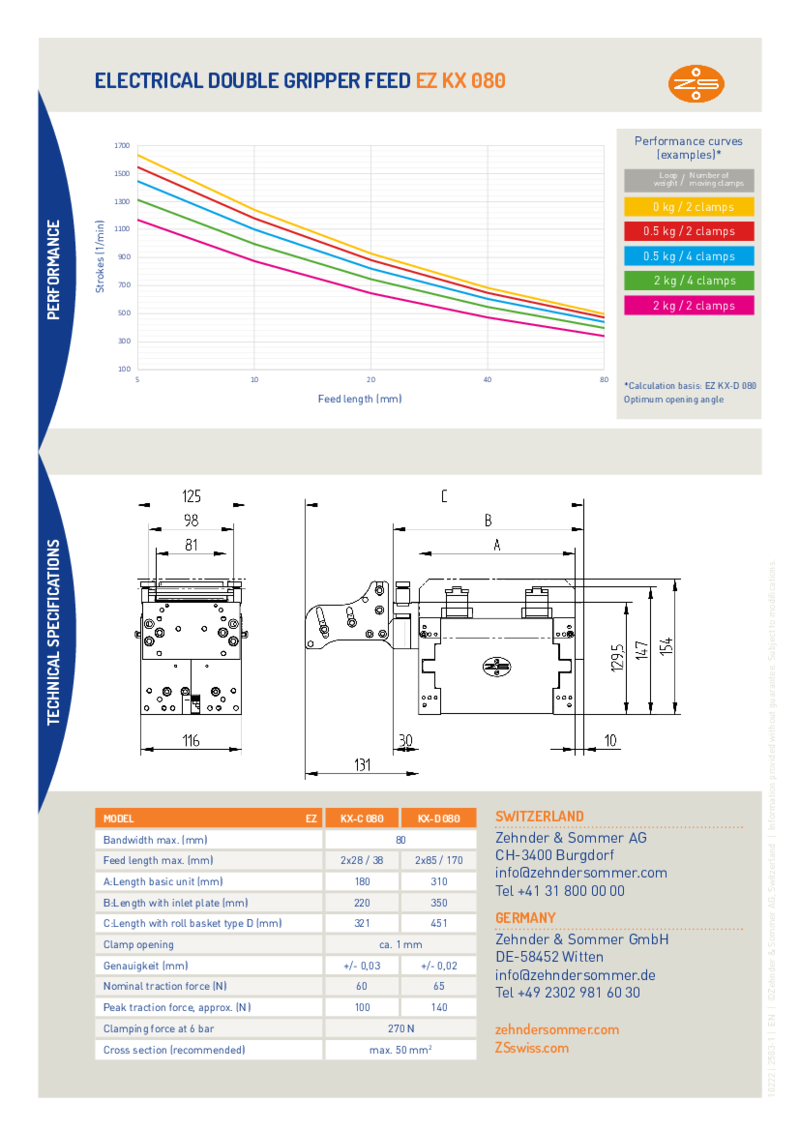

Technical Data

• Feed length options
  • Small Compact KXC: feed length 2 x 28 mm
  • Small Extended KXD: feed length 2 x 85 mm
• Material widths up to 80 mm
• Recommended material thickness 0.05-1.0 mm
• Precision
  • EZ KX-C ±0,03 mm
  • EZ KX-D ±0,02 mm
• Recommended material cross section: max. 50 mm^{2 **}

              ^{** please ask for case specific calculations}
